Create a Client-Side PDF Generator with Nuxt 3

We will walk through the steps to build a document analysis web application using Nuxt 3 and Azure Document Intelligence. This application allows users to -

Features will include -

🔍 Create/pass a template in HTML and placeholders for values
🕶️ Real-time document analysis status
💾 Download merged content as PDF

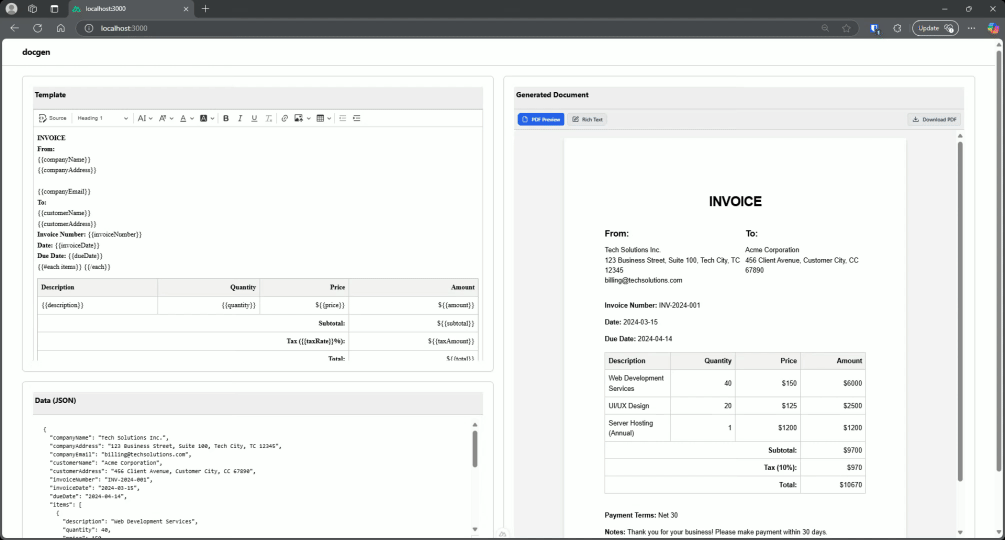

Here’s a quick demo.
docgen-pdf-generator-json-nuxt

While the demo showcases invoice generation, the same program can be extended to any document type - filled application forms, documents, etc.

Technology stack -

NuxtJS
Tailwind CSS
PDFJS
CKEditor

Why Client-Side PDF Generation?

Generating PDFs on the client-side offers several benefits:

Performance: Offloading PDF generation to the client’s device reduces server load and leads to faster response times.
User Experience: Users can preview changes in real-time, adjust their inputs, and generate PDFs without a trip to the server.
Cost-Effective: Avoid additional server infrastructure by leveraging modern browsers and their capabilities.
Flexibility: Easily integrate rich text editing and custom templates to create personalized documents.

Who is this post for?

You are trying to roll-out a PDF generator for invoices or filled applications
You are using an external service to generate PDFs
You are not satisfied with server-side PDF generators

Setting Up the Project

Before we start, make sure you have Node.js 18.x or later installed in your computer.

Create a blank Nuxt app.

1

bunx nuxi@latest init docgen

A key component of our PDF generator is a rich text editor to create templates. We will use CKEditor to achieve just that. We will also use a JSON editor to enable editing JSON data.

1

bun i ckeditor/ckeditor5-vue ckeditor5 vue3-json-editor

We will use pdfjs to preview and generate PDF, and DomPurify to make sure we are rendering things safer. Also, install types while at it.

1
2


bun i dompurify html2canvas jspdf pdfjs-dist pdfmake
bun i -d @types/pdfmake

Add styling and icons.

1

bunx nuxi@latest module add tailwindcss lucide-vue-next

Develop the app

Rich Text Editor

Rich text editor is one of the main components that enables users to edit templates.
You will not need the rich text editor if you don’t plan to edit templates within the app (the template is plain HTML anyway.)

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157


<template>
  <div class="richtext-editor">
    <ckeditor
      v-if="editor && config && modelValue"
      :editor="editor"
      v-model="modelValue"
      :config="config"
    />

    <div
      v-if="previewContent"
      class="preview-overlay prose"
      v-html="previewContent"
    ></div>
  </div>
</template>

<script setup lang="ts">
import { onMounted, ref } from "vue";

import {
  ClassicEditor,
  Autoformat,
  AutoImage,
  Autosave,
  Base64UploadAdapter,
  Bold,
  Essentials,
  // other items - see GitHub link
} from "ckeditor5";

import "ckeditor5/ckeditor5.css";

import { Ckeditor } from "@ckeditor/ckeditor5-vue";
import "ckeditor5/ckeditor5.css";
const isLayoutReady = ref(false);
const editor = ClassicEditor;
const LICENSE_KEY = "GPL"; // or <YOUR_LICENSE_KEY>.

const config = computed(() => {
  if (!isLayoutReady.value) {
    return null;
  }

  return {
    toolbar: {
      items: [
        "sourceEditing",
        "|",
        "heading",
        "|",
        "fontSize",
        "fontFamily",
        // other toolbar items. See GitHub link for all buttons
      ],
      shouldNotGroupWhenFull: false,
    },
    plugins: [
      // relevant plugins - see GitHub link
    ],
    fontFamily: {
      supportAllValues: true,
    },
    fontSize: {
      options: [10, 12, 14, "default", 18, 20, 22],
      supportAllValues: true,
    },
    heading: {
      options: [
        {
          model: "paragraph",
          title: "Paragraph",
          class: "ck-heading_paragraph",
        },
        {
          model: "heading1",
          view: "h1",
          title: "Heading 1",
          class: "ck-heading_heading1",
        },
        {
          model: "heading2",
          view: "h2",
          title: "Heading 2",
          class: "ck-heading_heading2",
        },
        {
          model: "heading3",
          view: "h3",
          title: "Heading 3",
          class: "ck-heading_heading3",
        },
        {
          model: "heading4",
          view: "h4",
          title: "Heading 4",
          class: "ck-heading_heading4",
        },
        {
          model: "heading5",
          view: "h5",
          title: "Heading 5",
          class: "ck-heading_heading5",
        },
        {
          model: "heading6",
          view: "h6",
          title: "Heading 6",
          class: "ck-heading_heading6",
        },
      ],
    },
    image: {
      toolbar: ["imageTextAlternative"],
    },
    initialData: "..",
    licenseKey: LICENSE_KEY,
    link: {
      addTargetToExternalLinks: true,
      defaultProtocol: "https://",
      decorators: {
        toggleDownloadable: {
          mode: "manual",
          label: "Downloadable",
          attributes: {
            download: "file",
          },
        },
      },
    },

    placeholder: "Type or paste your content here!",
    table: {
      contentToolbar: [
        "tableColumn",
        "tableRow",
        "mergeTableCells",
        "tableProperties",
        "tableCellProperties",
      ],
    },
  };
});
const modelValue = defineModel();

const props = defineProps<{
  previewContent?: string;
}>();

onMounted(() => {
  isLayoutReady.value = true;
});
</script>

<style>
/* include styles */
</style>

JSON Editor

Create the JSON editor that is used to edit JSON data.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57


<!-- components/DataEditor.vue -->
<template>
  <ClientOnly>
    <div
      class="h-[300px] border border-white/20 rounded-lg overflow-hidden bg-white/5"
    >
      <textarea
        v-model="jsonString"
        class="w-full h-full p-4 font-mono text-sm bg-transparent text-black dark:text-white/90 focus:outline-none"
        @input="handleInput"
        spellcheck="false"
      ></textarea>
    </div>
    <div v-if="error" class="mt-2 text-red-400 text-sm">
      {{ error }}
    </div>
  </ClientOnly>
</template>

<script setup lang="ts">
import { ref, watch } from "vue";
import { useDocumentStore } from "~/stores/document";

const props = defineProps<{ modelValue: Record<string, any> }>();
const emit = defineEmits<{
  "update:modelValue": [value: Record<string, any>];
}>();

const documentStore = useDocumentStore();
const error = ref("");
const jsonString = ref(JSON.stringify(props.modelValue, null, 2));

watch(
  () => props.modelValue,
  (newVal) => {
    const newString = JSON.stringify(newVal, null, 2);
    if (jsonString.value !== newString) {
      jsonString.value = newString;
    }
  }
);

const handleInput = (event: Event) => {
  const target = event.target as HTMLTextAreaElement;
  try {
    const parsed = JSON.parse(target.value);
    error.value = "";
    documentStore.isDirty = true;
    emit("update:modelValue", parsed);
  } catch (e) {
    error.value = "Invalid JSON format";
  }
};
</script>
<style>
/* include styles */
</style>

Create PDF Viewer

PDF viewer shows the PDF after merging data in template.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280


<!-- components/PdfViewer.vue -->
<template>
  <div class="pdf-viewer">
    <div v-if="loading" class="loading-indicator">
      <div class="spinner"></div>
      <div>Generating PDF preview...</div>
    </div>
    <div v-else-if="error" class="error-message">
      {{ error }}
    </div>
    <div v-else ref="canvasContainer" class="canvas-container"></div>
  </div>
</template>

<script setup lang="ts">
import { ref, onMounted, watch, onBeforeUnmount } from "vue";

const props = defineProps<{
  content: string;
}>();

const canvasContainer = ref<HTMLElement | null>(null);
const loading = ref(true);
const error = ref<string | null>(null);
let pdfDoc: any = null;
let currentPage = 1;
let pageRendering = false;
let pageNumPending: number | null = null;
let pdfjsLib: any = null;

// Clean up any resources when component is unmounted
onBeforeUnmount(() => {
  if (pdfDoc) {
    pdfDoc = null;
  }
});

// Initialize PDF.js
onMounted(async () => {
  if (process.client) {
    try {
      // Import PDF.js dynamically
      const pdfjsModule = await import("pdfjs-dist");
      pdfjsLib = pdfjsModule;

      // Set worker source - using CDN for the worker
      pdfjsLib.GlobalWorkerOptions.workerSrc =
        "https://cdnjs.cloudflare.com/ajax/libs/pdf.js/3.11.174/pdf.worker.min.js";

      // Generate and render PDF
      await generatePdf();
    } catch (err) {
      console.error("Error initializing PDF.js:", err);
      error.value = "Failed to initialize PDF viewer. Please try again.";
      loading.value = false;
    }
  }
});

// Watch for content changes
watch(
  () => props.content,
  async () => {
    if (pdfjsLib && process.client) {
      loading.value = true;
      error.value = null;
      await generatePdf();
    }
  }
);

// Generate PDF from content
async function generatePdf() {
  if (!pdfjsLib || !process.client) return;

  try {
    // Import pdfMake dynamically
    const pdfMakeModule = await import("pdfmake/build/pdfmake");
    const pdfFontsModule = await import("pdfmake/build/vfs_fonts");

    // Get the default export or the module itself
    const pdfMake = pdfMakeModule.default || pdfMakeModule;

    // Manually set up the vfs with a basic font
    if (!pdfMake.vfs) {
      // @ts-ignore - We know this property might exist
      pdfMake.vfs = pdfFontsModule.pdfMake?.vfs || {};
    }

    // Create a temporary element to parse the HTML
    const tempDiv = document.createElement("div");
    tempDiv.innerHTML = props.content || "";

    // Extract text content and structure
    const pdfContent = extractPdfContent(tempDiv);

    // Define the document with basic fonts
    const docDefinition = {
      content: pdfContent,
      defaultStyle: {
        font: "Roboto",
        fontSize: 12,
        lineHeight: 1.5,
      },
      pageSize: "A4",
      pageMargins: [40, 60, 40, 60] as [number, number, number, number],
    };

    // Generate PDF as Blob
    const pdfDocGenerator = pdfMake.createPdf(docDefinition);

    pdfDocGenerator.getBlob(async (blob: Blob) => {
      try {
        // Convert blob to array buffer
        const arrayBuffer = await blob.arrayBuffer();

        // Load PDF document
        const loadingTask = pdfjsLib.getDocument({ data: arrayBuffer });
        pdfDoc = await loadingTask.promise;

        // Initial/first page rendering
        await renderPage(1);
        loading.value = false;
      } catch (err) {
        console.error("Error rendering PDF:", err);
        error.value = "Failed to render PDF preview.";
        loading.value = false;
      }
    });
  } catch (err) {
    console.error("Error generating PDF:", err);
    error.value = "Failed to generate PDF preview.";
    loading.value = false;
  }
}

// Render the specified page
async function renderPage(num: number) {
  if (!pdfDoc) return;

  pageRendering = true;

  try {
    // Get page
    const page = await pdfDoc.getPage(num);

    // Clear previous content
    if (canvasContainer.value) {
      canvasContainer.value.innerHTML = "";
    }

    // Calculate scale to fit the container width
    const containerWidth = canvasContainer.value?.clientWidth || 800;
    const viewport = page.getViewport({ scale: 1 });
    const scale = containerWidth / viewport.width;
    const scaledViewport = page.getViewport({ scale });

    // Create canvas for each page
    const canvas = document.createElement("canvas");
    const ctx = canvas.getContext("2d");
    canvas.height = scaledViewport.height;
    canvas.width = scaledViewport.width;
    canvas.className = "pdf-page";

    // Add canvas to container
    canvasContainer.value?.appendChild(canvas);

    // Render PDF page into canvas context
    const renderContext = {
      canvasContext: ctx,
      viewport: scaledViewport,
    };

    await page.render(renderContext).promise;
    pageRendering = false;

    // If there's a pending page, render it
    if (pageNumPending !== null) {
      renderPage(pageNumPending);
      pageNumPending = null;
    }

    // If there are more pages, render them too
    if (num < pdfDoc.numPages) {
      renderPage(num + 1);
    }
  } catch (err) {
    console.error("Error rendering page:", err);
    pageRendering = false;
    error.value = "Failed to render PDF page.";
  }
}

// Extract content from HTML for PDF generation
function extractPdfContent(element: HTMLElement): any[] {
  const result: any[] = [];

  // Process child nodes
  Array.from(element.childNodes).forEach((node: Node) => {
    if (node.nodeType === Node.TEXT_NODE) {
      const text = node.textContent?.trim() || "";
      if (text) {
        result.push({ text });
      }
    } else if (node.nodeType === Node.ELEMENT_NODE) {
      const elementNode = node as HTMLElement;
      const nodeName = elementNode.nodeName.toLowerCase();

      // Handle different element types
      if (nodeName === "p") {
        result.push({
          text: elementNode.textContent?.trim() || "",
          margin: [0, 5, 0, 10],
        });
      } else if (nodeName === "h1") {
        result.push({
          text: elementNode.textContent?.trim() || "",
          fontSize: 24,
          bold: true,
          margin: [0, 10, 0, 10],
        });
      } else if (nodeName === "h2") {
        result.push({
          text: elementNode.textContent?.trim() || "",
          fontSize: 20,
          bold: true,
          margin: [0, 10, 0, 5],
        });
      } else if (nodeName === "h3") {
        result.push({
          text: elementNode.textContent?.trim() || "",
          fontSize: 16,
          bold: true,
          margin: [0, 10, 0, 5],
        });
      } else if (nodeName === "ul" || nodeName === "ol") {
        const items = Array.from(elementNode.children).map((li) => {
          return { text: li.textContent?.trim() || "", margin: [0, 2, 0, 2] };
        });

        result.push({
          ul: nodeName === "ul" ? items : undefined,
          ol: nodeName === "ol" ? items : undefined,
          margin: [0, 5, 0, 10],
        });
      } else if (nodeName === "table") {
        // Extract table data
        const tableData: string[][] = [];
        Array.from(elementNode.querySelectorAll("tr")).forEach((row) => {
          const rowData: string[] = [];
          Array.from(row.querySelectorAll("td, th")).forEach((cell) => {
            rowData.push(cell.textContent?.trim() || "");
          });
          if (rowData.length > 0) {
            tableData.push(rowData);
          }
        });

        if (tableData.length > 0) {
          result.push({
            table: {
              body: tableData,
              widths: Array(tableData[0].length).fill("*"),
            },
            margin: [0, 5, 0, 10],
          });
        }
      } else {
        // Recursively process other elements
        const childContent = extractPdfContent(elementNode);
        if (childContent.length > 0) {
          result.push(...childContent);
        }
      }
    }
  });

  return result;
}
</script>

Include this in a DocumentPreview.vue component that can toggle between PDF viewer and a rich text viewer - if needed, of course.

Layout and Page

Update layout -

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25


<!-- layouts/default.vue -->
<template>
  <div class="min-h-screen bg-surface-ground">
    <nav class="bg-surface-card border-b border-surface-border md:px-12 px-6">
      <div class=" h-16 flex items-center justify-between">
        <h1 class="text-xl font-bold text-black">docgen</h1>
        <div class="flex items-center gap-4">
          <button
            variant="secondary"
            :icon="isDark ? 'sun' : 'moon'"
            @click="toggleTheme"
            :title="isDark ? 'Switch to light mode' : 'Switch to dark mode'"
          />
        </div>
      </div>
    </nav>
    <main class=" py-6">
      <slot />
    </main>
  </div>
</template>

<script setup lang="ts"></script>

<style></style>

… and the page.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53


<template>
  <div class="mx-auto px-12">
    <div class="grid grid-cols-1 lg:grid-cols-2 gap-6">
      <div class="flex flex-col gap-6">
        <div class="card">
          <div class="toolbar">
            <h2 class="section-title">Template</h2>
          </div>
          <div class="h-[600px] overflow-hidden">
            <ClientOnly>
              <RichTextEditor v-model="template" class="h-full" />
            </ClientOnly>
          </div>
        </div>

        <div class="card">
          <!-- Removed flex-1 from card -->
          <div class="toolbar">
            <h2 class="section-title">Data (JSON)</h2>
          </div>
          <div class="editor-container h-[400px] overflow-hidden">
            <DataEditor v-model="jsonData" class="h-full" />
          </div>
        </div>
      </div>

      <div class="card">
        <!-- Removed flex-1 from card -->
        <div class="toolbar">
          <h2 class="section-title">Generated Document</h2>
          <div class="toolbar-actions">
            <!-- <Button variant="secondary" icon="refresh">Auto-refresh</Button> -->
          </div>
        </div>
        <div class="h-[1024px] overflow-hidden">
          <DocumentPreview :data="jsonData" class="h-full" />
        </div>
      </div>
    </div>
  </div>
</template>

<script setup lang="ts">
import { useDocumentStore } from "~/stores/document";
import { storeToRefs } from "pinia";

const documentStore = useDocumentStore();
const { template, jsonData } = storeToRefs(documentStore);
</script>

<style scoped>
/* styles */
</style>

Run the app!

1

bun dev

This should populate some default template and data, and show you a nice preview of the merged content.

Conclusion

Generating PDF on client is not hard and keeps your server load low.

While generating PDFs client-side can certainly help in most use cases (especially for enterprise customers), it may not be a pleasant experience for mobile users. Also, features like emailing PDF, supporting non-PDF formats, etc. are hard to achieve.

See complete code on GitHub.
